Legend Window & Door System

Premium window and door system combining aesthetics with superior performance.

General Features

The Legend PVC Window and Door System is designed with an 80 mm installation width and features a 6-chamber profile structure. The system's design has been developed with particular emphasis on high performance criteria, where profiles are created by combining the most suitable structural elements. The design process has holistically evaluated window performance including insulation (thermal and acoustic), structural strength, and sealing properties alongside the profile geometry. All profiles in the system are manufactured in accordance with EN 12608-1 standard.

Technical Specifications

Profile Width: 80 mm: 80 mm
Number of Chambers: 6: 6
Number of Gaskets: 3 (Center Gasketed): 3 (Central gasket)
Gasket Material: TPE Grey / Black: TPE Grey / Black
Glazing Bead: Single-lip with PCE gasket
Glass Thickness: 24, 30, 36, 44, 52 mm
Standard: EN 12608-1
Thermal Transmittance (Uf): 0.92 W/m²·K

Why Choose Legend Window & Door System

Engineered for durable performance, energy efficiency and modern aesthetics.

Superior Insulation

Multi-chamber profiles and advanced gaskets improve energy efficiency.

Structural Integrity

Reinforced construction provides long-term stability and durability.

Acoustic Comfort

Effective sound reduction supports quiet, comfortable interiors.

Design Flexibility

Supports various configurations and glazing options for modern architecture.

Finishes

Color Options

Laminate color alternatives provide superior durability and low maintenance. Interior and exterior colors can be combined.

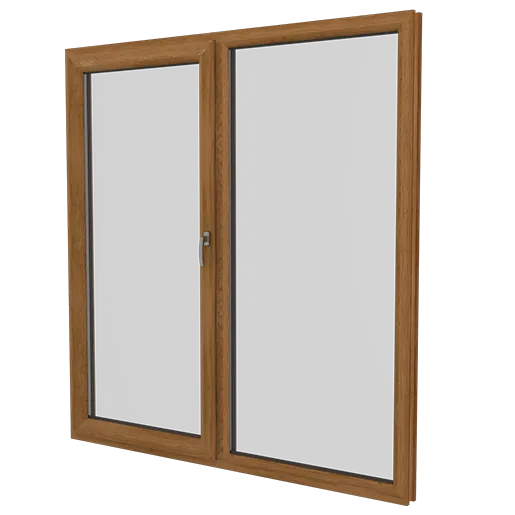

u-PVC laminate color options overview

Interior and exterior laminate colors can be combined.

Golden Oak color swatch
Golden Oak
Antique Oak color swatch
Antique Oak
Anthracite Grey color swatch
Anthracite Grey
Hazelnut color swatch
Hazelnut
Cream color swatch
Cream
Ash Black color swatch
Ash Black
Mahogany color swatch
Mahogany
Metallic Anthracite color swatch
Metallic Anthracite
Metallic Silver color swatch
Metallic Silver
Platinum Crown color swatch
Platinum Crown
Pyrite color swatch
Pyrite
Vizon color swatch
Vizon
Winchester color swatch
Winchester
